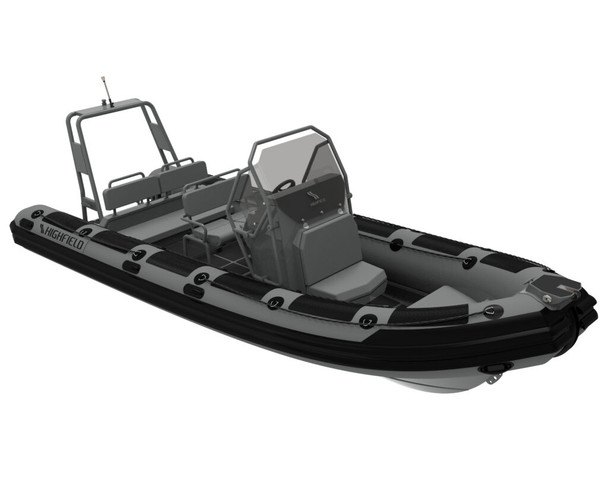

Highfield Patrol Range 700 (Hypalon)
Available with either a bow step or bollard
The Patrol boats carry large loads and plane quickly and easily with little horse-power. The hull is built from 5083 aluminium plates with 6 and 10mm stringers. With their super deep V, wide chines and large diameter tube, they offer high manoeuvrability, high safety and a soft dry ride even in the roughest conditions.
These boats are ideal pursuit craft or work boats and can be configured with different seating and console options. When safety, toughness & reliability really matter, the Patrol range should be your first port of call. With MCA rating & commercial coding available, the Patrol range is perfect for commercial chartering or working offshore too.
The Patrol 700 comes in a range of colours and specification options as shown below.
For more details please email us at sales@rib-shop.com or call us on 01489 556800.
- ORCA® Hypalon
- Flush mount non-return valves
- High tensile chromated & powder coated aluminum hull
- Integrated transom supports
- Self-draining deck
- Steering wheek
- Integrated under-deck fuel tank (40L)
- Lifting points and towing eyes
- Tow bridle points
- Anti-slip deck
- Heavy duty rubbing strake
- Keel guard
- Highfield dry bag
- Foot pump, oars, repair kit
- Carbon dash
- Electrical pack for console
- Electrical pack for boat
- Transom ladder
- Bow Cushion
- Console and seat options
- Rollbar with ladder
- T-Top
- Suspension seat with shock
- Dive rack
- Deck wash
|
|
|
OVERALL LENGTH |
6.99 m |
22' 11" |
INTERNAL LENGTH |
5.23 m |
17' 2" |
OVERALL WIDTH |
2.83 m |
9' 3" |
INTERNAL WIDTH |
1.64 m |
5' 5" |
DEAD RISE |
26° |
|
TUBE DIAMETER |
54 cm |
21" |
NUMBER OF AIR CHAMBERS |
6 |
|
MAXIMUM LOAD |
1630 kg |
3594 lb |
MAXIMUM PEOPLE |
14 |
|
BOAT ONLY WEIGHT |
957 kg |
2110 lb |
MAXIMUM POWER |
250 hp |
2*150hp |
ENGINE SHAFT |
XL single |
L twin |
FUEL TANK |
285 l |
75.2 gal |
DESIGN CATEGORY |
C |
|
|
|
|
*includes console, seat & rollbar
*includes console, seat & rollbar
