Highfield Patrol 760 (7.6m)

Hover over image to zoom

  • Image 1
  • Image 2
  • Image 3
  • Image 4
  • Image 5
  • Image 6
  • Image 7
  • Image 8
  • Image 9
  • Image 10
  • Image 11
  • Image 12
£53,245.00
SKU:
PA760

 Product Description

Highfield Patrol Range 760 (Hypalon)

Available with either a bow step or bollard

The Patrol boats carry large loads and plane quickly and easily with little horse-power. The hull is built from 5083 aluminium plates with 6 and 10mm stringers. With their super deep V, wide chines and large diameter tube, they offer high manoeuvrability, high safety and a soft dry ride even in the roughest conditions.

These boats are ideal pursuit craft or work boats and can be configured with different seating and console options. When safety, toughness & reliability really matter, the Patrol range should be your first port of call. With MCA rating & commercial coding available, the Patrol range is perfect for commercial chartering or working offshore too.

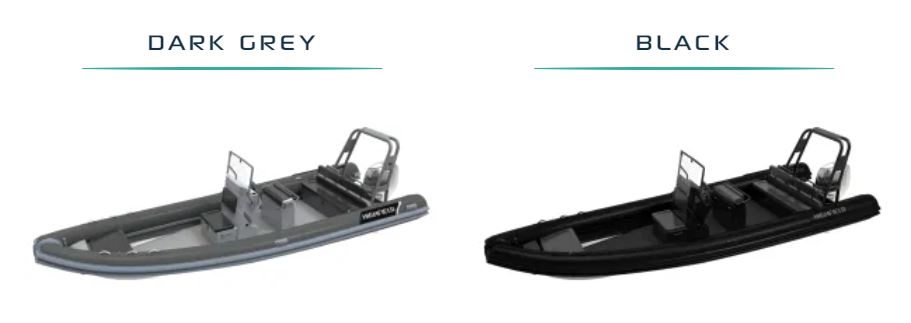

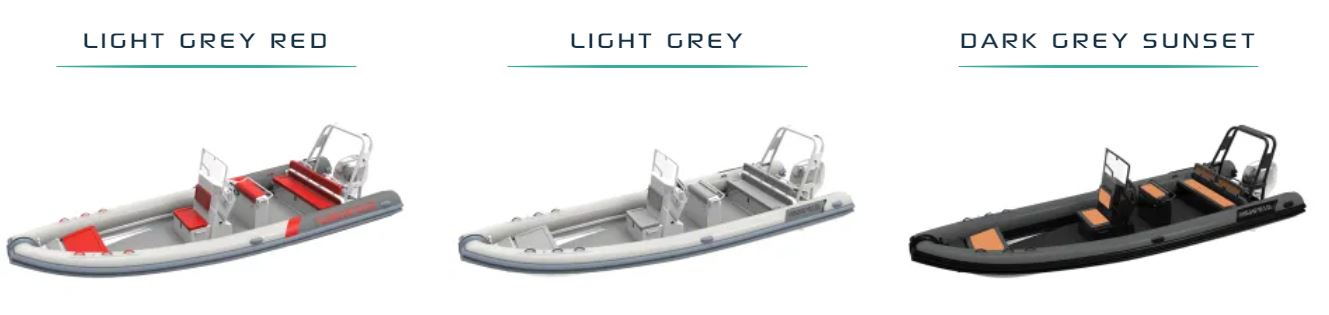

The Patrol 760 comes in a range of colours and specification options as shown below.

For more details please email us at sales@rib-shop.com or call us on 01489 556800.



STANDARD FEATURES

  • ORCA® Hypalon
  • Flush mount non-return valves
  • High tensile chromated & powder coated aluminum hull
  • Integrated transom supports
  • Self-draining deck
  • Steering wheek
  • Integrated under-deck fuel tank (40L)
  • Lifting points and towing eyes
  • Tow bridle points
  • Anti-slip deck
  • Heavy duty rubbing strake
  • Keel guard
  • Highfield dry bag
  • Foot pump, oars, repair kit
  • Carbon dash
  • Electrical pack for console
  • Electrical pack for boat
  • Transom ladder
  • Bow Cushion

OPTIONAL EQUIPMENT

  • Console and seat options
  • Rollbar
  • T-Top
  • Suspension seat with shock
  • Dive rack
  • Deck wash


OVERALL LENGTH 7.64 m 25' 1"
INTERNAL LENGTH 5.83 m 19' 1"
OVERALL WIDTH 2.82 m 9' 3"
INTERNAL WIDTH 1.65 m 5' 5"
DEAD RISE 26°
TUBE DIAMETER 54 cm 21"
NUMBER OF AIR CHAMBERS 6
MAXIMUM LOAD 1820 kg 4012 lb
MAXIMUM PEOPLE 16
BOAT ONLY WEIGHT* 1020 kg 2249 lb
MAXIMUM POWER 300 hp 2*150hp
ENGINE SHAFT XL single L twin
FUEL TANK 285 l 75.2 gal
DESIGN CATEGORY C or B


*includes console, seat & rollbar
