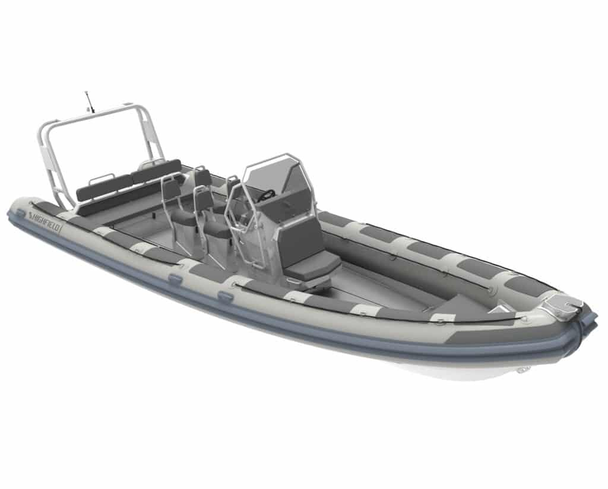

Highfield Patrol 860 (8.6m)

Hover over image to zoom

  • Image 1
  • Image 2
  • Image 3
  • Image 4
  • Image 5
  • Image 6
  • Image 7
  • Image 8
  • Image 9
  • Image 10
  • Image 11
  • Image 12
  • Image 13
  • Image 14
  • Image 15
£67,995.00
SKU:
PA860

 Product Description

Highfield Patrol Range 860 (Hypalon)

Available with either a bow step or bollard

The Patrol boats carry large loads and plane quickly and easily with little horse-power. The hull is built from 5083 aluminium plates with 6 and 10mm stringers. With their super deep V, wide chines and large diameter tube, they offer high manoeuvrability, high safety and a soft dry ride even in the roughest conditions.

These boats are ideal pursuit craft or work boats and can be configured with different seating and console options. When safety, toughness & reliability really matter, the Patrol range should be your first port of call. With MCA rating & commercial coding available, the Patrol range is perfect for commercial chartering or working offshore too.

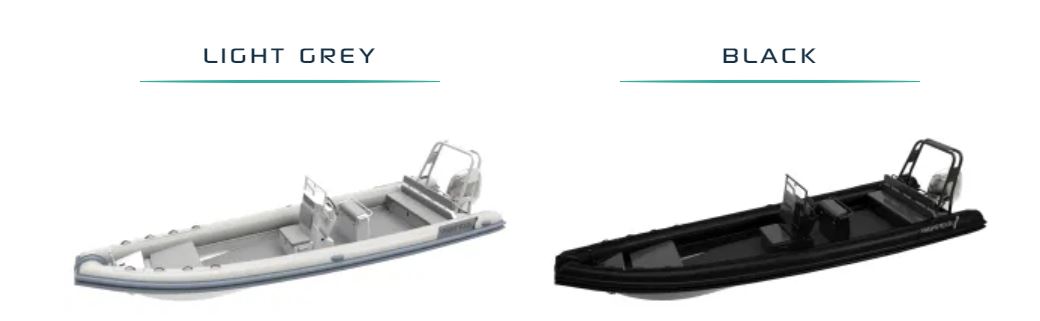

The Patrol 860 comes in a range of colours and specification options as shown below.

For more details please email us at sales@rib-shop.com or call us on 01489 556800.

STANDARD FEATURES

  • ORCA® Hypalon
  • Flush mount non-return valves
  • High tensile chromated & powder coated aluminum hull
  • Integrated transom supports
  • Self-draining deck
  • Steering wheel
  • Integrated under-deck fuel tank
  • Lifting points and towing eyes
  • Tow bridle points
  • Anti-slip deck
  • Heavy duty rubbing strake
  • Keel guard
  • Highfield dry bag
  • Foot pump, oars, repair kit
  • Carbon dash
  • Electrical pack for console
  • Electrical pack for boat
  • Transom ladder
  • Bow Cushion

OPTIONAL EQUIPMENT

  • Console and seat options
  • Rollbar with ladder
  • T-Top
  • Suspension seat with shock
  • Dive rack
  • Deck wash

OVERALL LENGTH 8.70 m 28' 6"
INTERNAL LENGTH 6.31 m 20' 8"
OVERALL WIDTH 3.10 m 10'2"
INTERNAL WIDTH 1.84 m 6'
DEAD RISE 26°
TUBE DIAMETER 58 cm 23"
NUMBER OF AIR CHAMBERS 6
MAXIMUM LOAD 2270 kg 5004 lb
MAXIMUM PEOPLE 19
BOAT ONLY WEIGHT* 1156 kg 2549 lb
MAXIMUM POWER 425hp 2*300 hp
ENGINE SHAFT Single UL or Twin XL
FUEL TANK 430 l 113.6 gal
DESIGN CATEGORY B


*includes console, seat & rollbar
